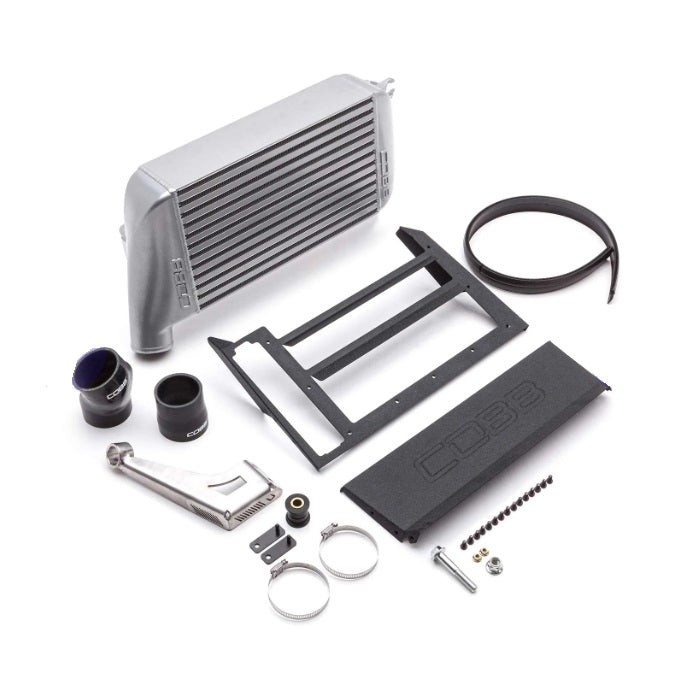

An intercooler is a key component in turbocharged and supercharged engines, designed to cool the compressed air before it enters the engine. Its main purpose is to improve performance, efficiency, and engine safety by lowering intake air temperatures after compression.
Why an intercooler is needed
When air is compressed by a turbocharger or supercharger:
- The air becomes hotter (due to physics of compression)
- Hot air is:
- Less dense
- Contains less oxygen per unit volume
- More prone to causing engine knock (pre-detonation)
An intercooler cools this air down before it enters the engine, making it:
- Denser (more oxygen)
- Safer for combustion
- More efficient for power production
How an intercooler works
1. Air is compressed by the turbo/supercharger
- Ambient air is drawn in and compressed
- Compression raises both:
- Pressure
- Temperature
2. Hot compressed air enters the intercooler
- The air flows through internal passages (tubes or cores)
- The intercooler is positioned between:
- Turbo outlet
- Intake manifold/throttle body
3. Heat is transferred to the intercooler core
Intercoolers are heat exchangers. Heat moves via conduction:
- Hot compressed air flows inside the core
- Outside air (or coolant, depending on type) flows around the core
- Heat transfers from the hot intake air → intercooler material → cooling medium
4. Cooled, denser air exits the intercooler
- Temperature drops significantly
- Air density increases
- More oxygen is packed into each intake charge
This denser air allows:
- More efficient combustion
- More fuel to be burned safely
- Increased power output
Why cooling increases power
Power in an engine is largely dependent on how much oxygen is available for combustion.
Cooling the air:
- Increases air density (more oxygen molecules per volume)
- Allows the ECU to inject more fuel safely
- Produces a stronger combustion event
This is why intercoolers are critical on boosted engines.
Additional benefits
1. Reduces risk of knock (detonation)
Hot air increases the likelihood of premature combustion. Intercoolers help:
- Stabilize combustion
- Allow more ignition timing
- Support higher boost levels safely
2. Improves engine reliability
Lower intake temperatures:
- Reduce thermal stress on engine components
- Lower exhaust gas temperatures (EGTs)
- Help maintain consistent performance under load
3. Consistent performance
Without an intercooler:
- Intake temps rise rapidly under sustained boost
- Power drops (“heat soak”)
With an intercooler:
- Temperatures stay more stable
- Performance remains consistent during repeated acceleration
Types of intercoolers
1. Air-to-Air intercooler
Most common type.
- Uses ambient air to cool intake air
- Mounted in front of the vehicle (front-mount intercooler)
Pros:
- Simple design
- No extra fluids required
- Reliable and low maintenance
Cons:
- Depends on airflow (less effective at low speeds)
2. Air-to-Water intercooler
Uses coolant to absorb heat from intake air.
- Intake air passes through a heat exchanger cooled by liquid
- Then the heated liquid is cooled via a radiator
Pros:
- More compact
- Very effective in tight engine bays
- Better for short bursts of power
Cons:
- More complex
- Requires pumps, reservoirs, and plumbing
Key factors that affect intercooler performance
- Core size → larger surface area = better heat dissipation
- Fin density → more fins increase cooling but may restrict airflow
- Airflow → crucial for air-to-air intercoolers
- Pressure drop → resistance to airflow through the core
- Heat soak → when the intercooler itself becomes saturated with heat
Real-world example
Without an intercooler:
- Turbo compresses air → intake temps may exceed 80–100°C
- Air is less dense → lower oxygen content
- ECU may reduce boost or timing to protect the engine
With an intercooler:
- Intake temps may drop to ~30–50°C (depending on conditions)
- Air is denser → more oxygen
- Engine can safely produce more power
Summary
An intercooler works as a heat exchanger that:
- Cools compressed air from the turbo or supercharger
- Increases air density
- Improves oxygen availability
- Reduces knock risk
- Enhances engine performance and reliability
In simple terms:
Cooler air = denser air = more oxygen = more power + safer combustion
